1.Application:

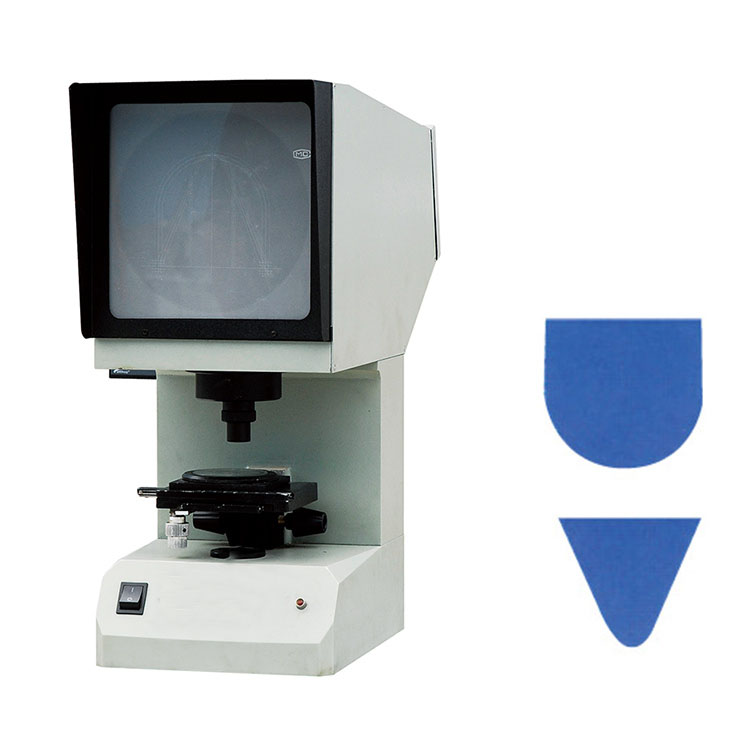

CST-50 Charpy Projector is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method.
It is widely used to check the U and V-shaped notch of the impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.
2.Main Specifications:
| Model | CST-50 |
| Diameter Of The Screen | 200 mm |
| Magnification Of The Instrument | 50X |
| Objective Magnification | 2.5X |
| Projection Objective Lens Magnification | 20X |
| Working Table Square Shape | 110 * 125 mm |
| Diameter Of Round Worktable | 90 mm |
| Stroke Of Working Table | Longitude: ±10 mm, Latitude: ±10 mm,Rise And Fall: ±12 mm |
| Scope Of Revolving Of The Worktable | 360° |
| Power Supply | 220V, 50Hz, 150W |
| Dimension | 515 * 224 * 603 mm |
| Light Source (Tungsten Halogen Lamp) | 12V, 100W |
