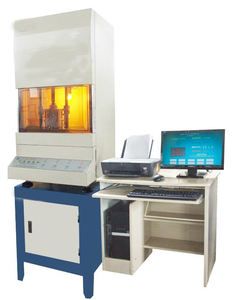

YZ-6020
Computer Control Rubber Mooney Viscometer
1.Application:
YZ-6020 Computer Control Rubber Mooney Viscometer is used for measuring viscosity and
relaxation of base rubber, raw rubber or rubber mass prevulcanization properties.
It is also used for measuring viscosity in Mooney value for compounded or uncompounded
unvulcanized natural, synthetic or regenerated rubber. Ideal experimental instrument of rubber
industry and scientific research units.
2.Standard:
According with GB/T1232 “Rubber unvulcanized-Determination of mooney viscosity”, GB/T 1233
”Rubber, unvulcanized-Determination of prevulcanization characteristics-Shearing disk method”,
ISO289, ISO667 ect.
3.Features:
3.1. This instrument has excellent performances including automatic calibration, higher stability.
3.2. Computer controlled, interface board collect data.
3.3. This instrument has statistics, analysis, storage and comparison functions.
Humanized design, easy to operate.
3.4. Intelligent digital control temperature, simple adjustment, wide range of temperature.
4.Technical Parameters:
| Model | YZ-6020 |
| Measuring Temperature Range | Room Temperature ~ 200 °C |
| Temperature Measurement Accuracy | ≤±0.3 °C |
| Control Accuracy | ≤±0.3 °C |
| Temperature Resolution | 0.1 °C |
| Measurement Range Of Torque | 0~200 Mooney Value |
| Calibration Accuracy | 100 ± 0.5 Mooney Value |
| Rotor Speed | 2±0.02 r/min |
| Measure Time | Scorch: 0~200 min; Viscosity: 4, 8, 9…min; Resolution: 1 s |
| Ambient Temperature | 0~35 °C |
| Relative Humidity | < 80% |
| Test Pressure | 11.5 kN ± 0.5 kN |
| Supply Air Pressure | 0.45 ~ 0.6 Mpa |
| Supply Power | AC 220V, 50Hz |
| Dimensions | 590*600*1175mm |
| Weight | 260 KG |
