1.Application:

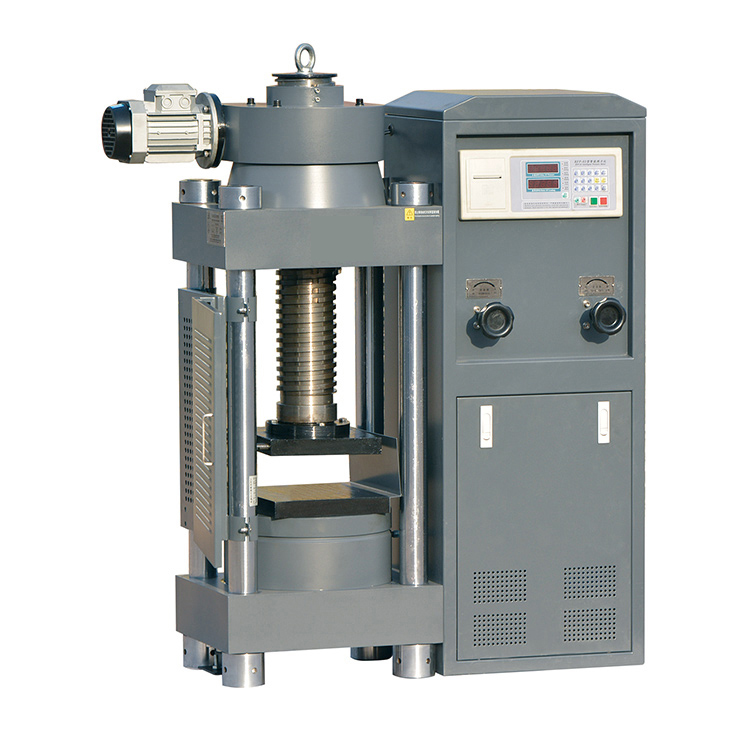

YES-3000D Digital Display Hydraulic Power Compression Testing Machine mainly used for
concrete cement, rock, brick and other building materials compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities,
R&D institution lines. The test operation and data processing meets standard requirements.
2.Main Specifications:
| Model | YES-3000D |
| Basic Parameter | |
| Max. Load | 3000 KN (300 TONS) |
| Load Accuracy | ≤±1% |
| Piston Stroke | 80mm |
| Upper Pressure Plates Size | 265*265mm |
| Lower Pressure Plates Size | 360*285mm |
| Compression Space | 340mm |
| Host Dimension | 1000*500*1500 |
| Weight | 1500 KG |
| Power | 2.0 KW |
| Power Supply | AC 380V, 50Hz (Can Be Custom) |
