1.Application:

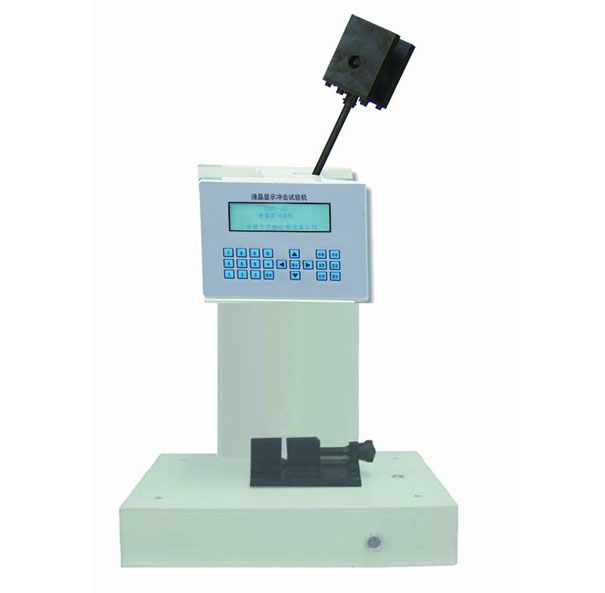

XJUD Series Digital Display Izod Impact Testing Machine is mainly used in testing the nonmetal materials’ impact toughness, such as horniness
plastic, strong nylon, glass reinforced plastics, china, clay rock, anti-electric etc.
Electronic Izod Impact Tester is the ideal test equipment of chemical industrial, R&D institution, universities and colleges, quality testing department
and professional manufacturer laboratory.
2.Feature:
2.1.This series of impact test enginery is adopting single chip control to enhance product control accuracy and stability and can be fixed friction and
wind resistance that brings by the energy loss. LCD Display impact energy.
2.2.The XJUD Digital Display IZOD Impact Testing Machine main technical parameters of the instrument to the national standard GB/T 1843, the
international standard ISO180 and the industry standard JB/T 8762.
2.3.The device can test one or ten specimens, can delete any test data, calculate the average intensity, and print test report.
3.Technical Parameters:
| Model | XJUD-5.5 | ||
| Impact Speed | 3.5 m/s | ||
| Impact Energy | 1J | 2.75J | 5.5J |
| Pendulum Power Distance | Pd1=0.5155N.m | Pd2.75=1.4177N.m | Pd5.5=2.8355N.m |
| Impact Center Distance | 322mm | ||
| Rising Angle Of The Pendulum | 160° |
