1.Applications:

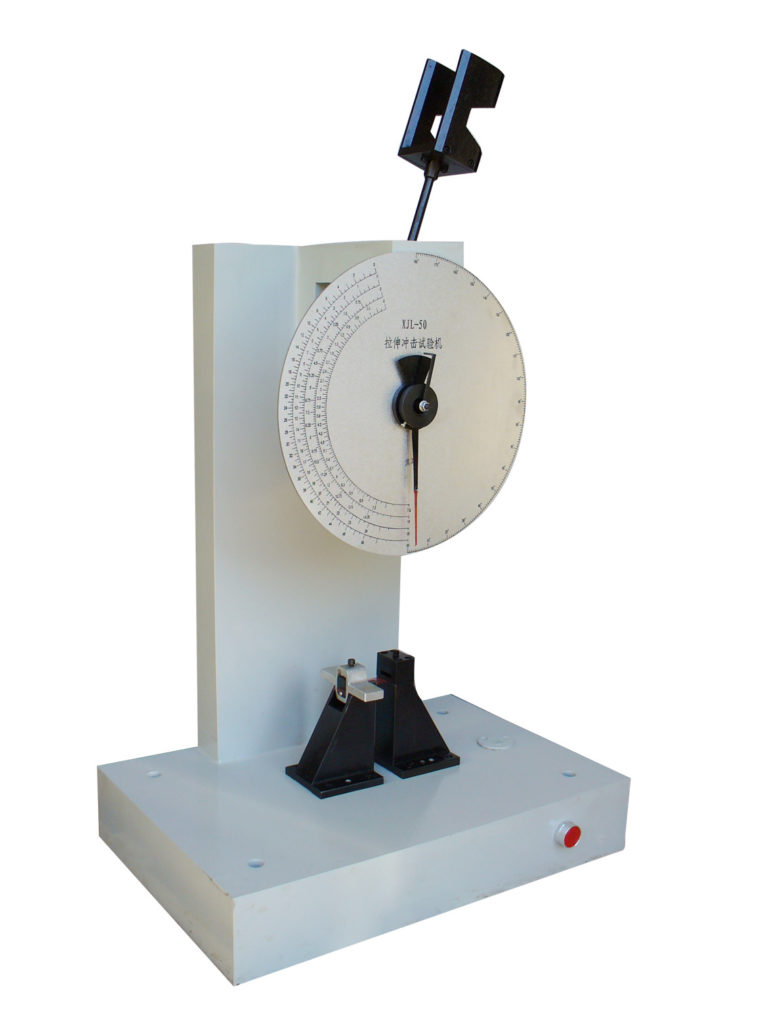

XJU Series Dial Display Plastic Izod Impact Testing Machine is a pointer dial, electric hammer released.
Scope: hard plastic, fiber reinforced composites, fiberglass, ceramics, asbestos, etc. non-metallic material to impact test.
2.Standard:
JB/T8762, GB/T1843, ISO180 and so on.
3.Technical Parameter:
| Model | XJU–22 | ||
| Impact Energy | 22 J | ||
| Pendulum Torque (Standard Configuration Is One Pendulum) | 5.5 J PendulumPL=2.8355Nm | 11 J PendulumPL=5.6711Nm | 22 J PendulumPL=11.3419Nm |
| Impact Speed | 3.5m/s | ||
| Pendulum Angle | 160° | ||
| Energy Accuracy | 0.05J |
