1.Applications:

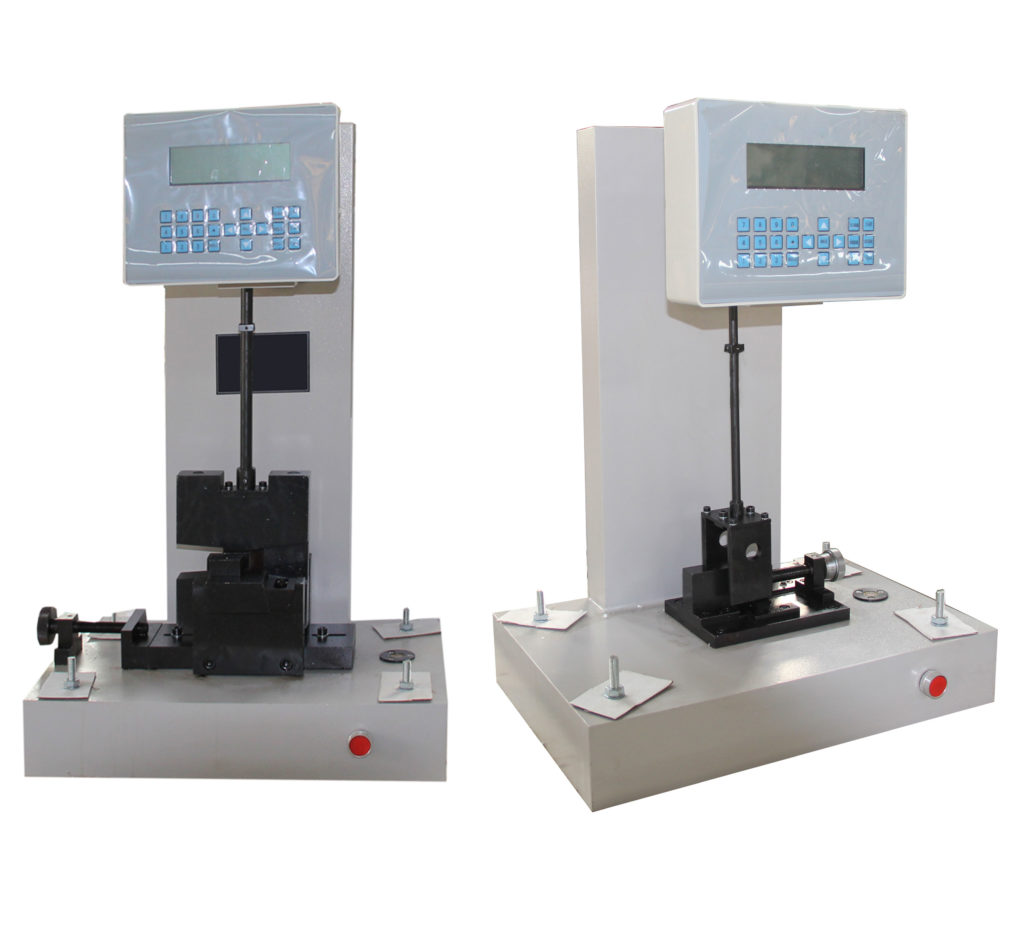

XJJ-50D Digital Display Charpy Impact Testing Machine is Single-chip microcomputer control,
electric hammer block release, the impact energy display by the LCD.
Each set of sample can do one to ten data, test data can be deleted arbitrarily.
Automatically calculate the strength and average strength. Automatic print data report.
Scope of application: hard plastic, fiber reinforced composite materials, glass fiber reinforced
plastic, ceramic, asbestos etc. Nonmetal materials for impact test.
2.Standard:
JB/T8761,GB/T1043,ISO179 and so on.
3.Technical Parameter:
| Model | XJJ-50D | |||
| Impact Energy | 7.5J | 15J | 25J | 50J |
| Pendulum Torque (Standard Configuration Is One Pendulum) | 7.5 J PendulumPL=3.866Nm | 15 J PendulumPL=7.7324Nm | 25 J PendulumPL=12.8888Nm | 50 J PendulumPL=25.777Nm |
| Dial Indexing Angle | 1/100 | |||
| Impact Speed | 3.8m/s | |||
| Pendulum Angle | 160° |
