1.Applications:

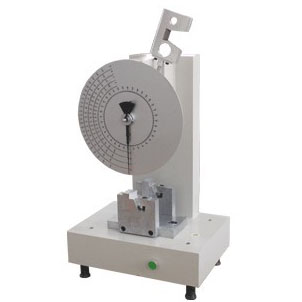

XJJ-5 Dial Display Plastic Charpy Impact Testing Machine is pointer dial, electric hammer block
release. Application: hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic,
ceramic, asbestos etc. nonmetal materials for impact test.
2.Standard:
JB/T8761、GB/T1043、ISO179 and so on.
3.Main Specifications:
| Model | XJJ-5 |
| Impact Energy | 5 J |
| Pendulum Torque | 5 J Pendulum PL=2.5777Nm |
| Impact Speed | 2.9 m/s |
| Pendulum Angle | 160° |
| Span Of Support(mm) | 95 mm |
| Round Angle Of The Jaw | R=1±0.1 mm |
| Round Angle Of Impact Cutting Edge | R=2±0.5 mm |
| Impact Blade Angle | 30±l° |
| The Distance Between Pendulum Center And Sample Center | 221 mm |
