1.Application:

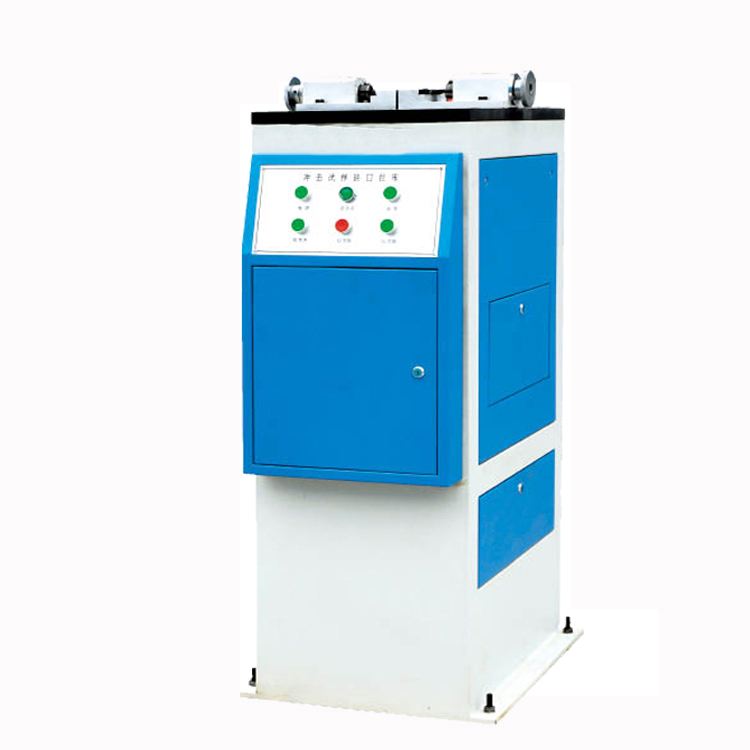

VU-2Y Hydraulic Control Impact Specimen Notch Broaching Machine is exclusively used for accurately processing the V-shaped notch and U-shaped notch of impact specimens, being the indispensable special equipment used for impact test of metal materials and also the ideal auxiliary impact equipment for physicochemical laboratories of such industries as metallurgy industry, boiler pressure vessel industry, truck, ship and machine manufacture industry, etc. Each broach can be used for about more than 20000 times.
2.Standards:
ASTM E23-02a, EN10045, ISO148, ISO083, DIN 50115, GB229-2007.
3.Technical Specifications:
| Model | VU-2Y |
| Shape Of Sample Notch | V Shape 2 mm and U Shape 2mm(Optional: U Shape 3mm and U Shape 5mm) |
| Sample Size | (10, 7.5, 5) * 10 * 55mm |
| Cutting Mode | Hydraulic Automatic |
| Journey Of Broach | V 2, U 2: 350mm(Optional: U 3: 350mm; U 5: 380mm) |
| Broaching Speed | 2.50 m/min |
| Broach Material | W18Cr4V |
| Lubrication System | Lubricating Oil Circulation |
| Power | 400W |
| Power Supply | 380V±10%, 50Hz |
| Max. Dimension | 660 * 500 * 1240 mm |
| Weight | 200 KG |
