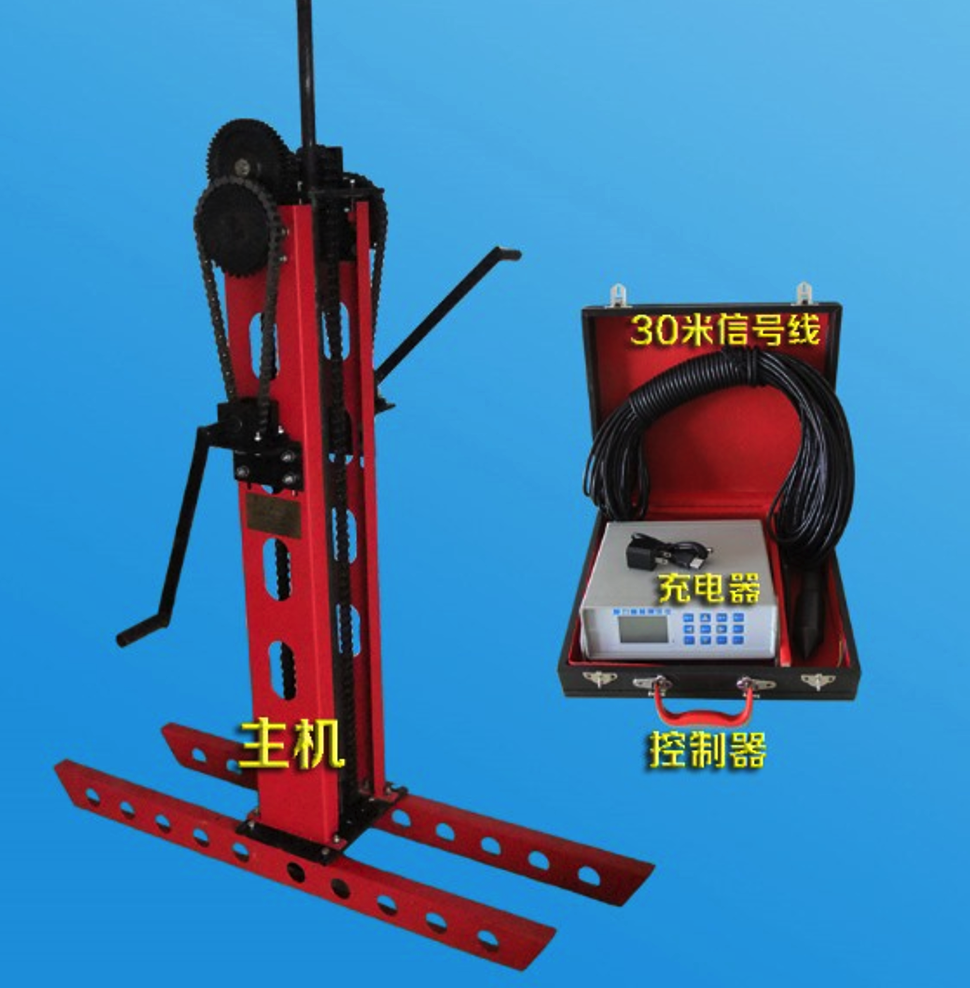

Name：Static Cone Probe
Model：CLD-3
Specification
一、The CLD-3 static cone penetration machine uses mechanical transmission to press the probe into the soil at a uniform speed. It is suitable for testing in soft soil, cohesive soil, loess, sandy soil and other stratums. The resistance generated when the probe is in contact with the soil layer is transmitted to the measuring instrument on the ground through the resistance change signal. The parts of the whole machine are light in weight, small in size, convenient to carry, easy to install, and high in work efficiency. It can be equipped with different diameters of probes and probes.
二、technical parameter
- Structure: main machine (complete machine), ground anchor, hand-cranked type.
- Rated penetration force: CLD-3 30KN.
- Cross plate shearing: <132Kpa
- Pulling force: 15KN 25KN.
- Penetration speed: 1.2 m/min.
- Host weight: 60 kg.
