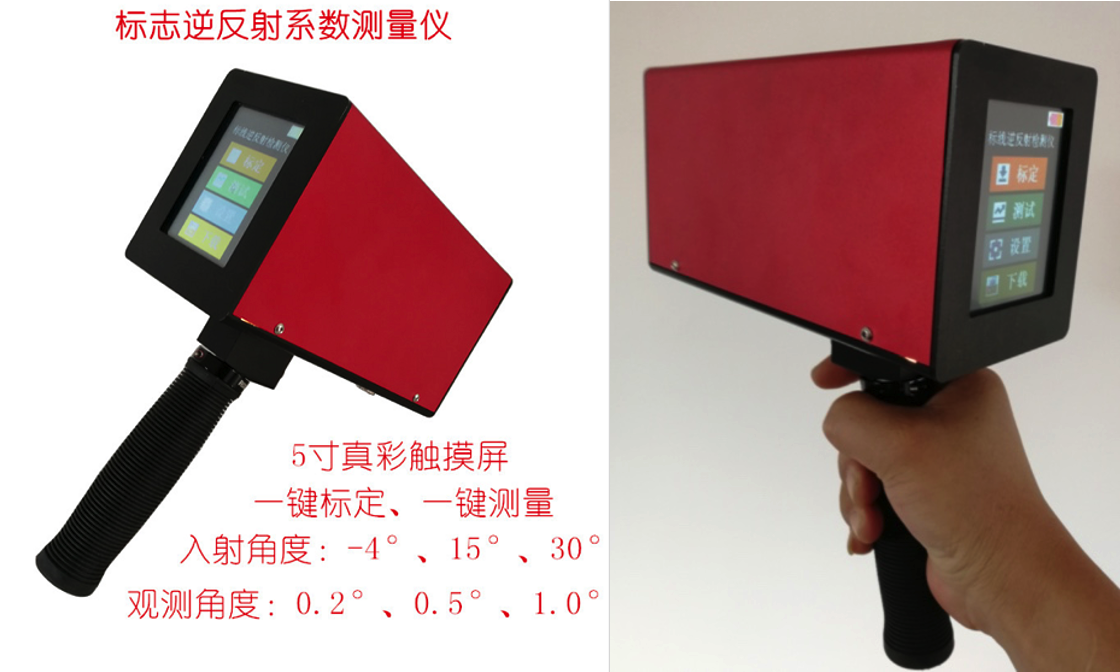

Name：Sign retroreflective coefficient measuring instrument
Model：BZ-II
Specification
一、Features:
A precision instrument designed to measure the retroreflective coefficient of daytime traffic signs
5-inch high-resolution full touch screen, even in the sun can read the value clearly
Simple operation, user-friendly menu interface
Can identify all reflective materials and colors
Rugged and ergonomic design, comfortable to hold
二、Technical specifications:
- Incident angle: observation angle (α): 0.2°, 0.5°, 1°;
- Incident angle (β): -4°, 15°, 30°
- Light source: LED light
- Measuring probe: suitable for V(λ)
- Measuring range: R’=0…2000cd.m-2.lx-1
- Test area: ￠25mm
- Test time: ≈3 seconds
- Memory: Built-in 1G storage space, about 50,000 measurement data
- Display: 5-inch large touch screen
- Data communication port: USB
- Battery: Ni-Cr battery pack
- Operating temperature: -10℃~~+50℃
- Storage conditions: -20℃~~+60℃
- Material: aluminum alloy treatment
- Size: 290mm×220mm×85mm
- Weight: 2kg
