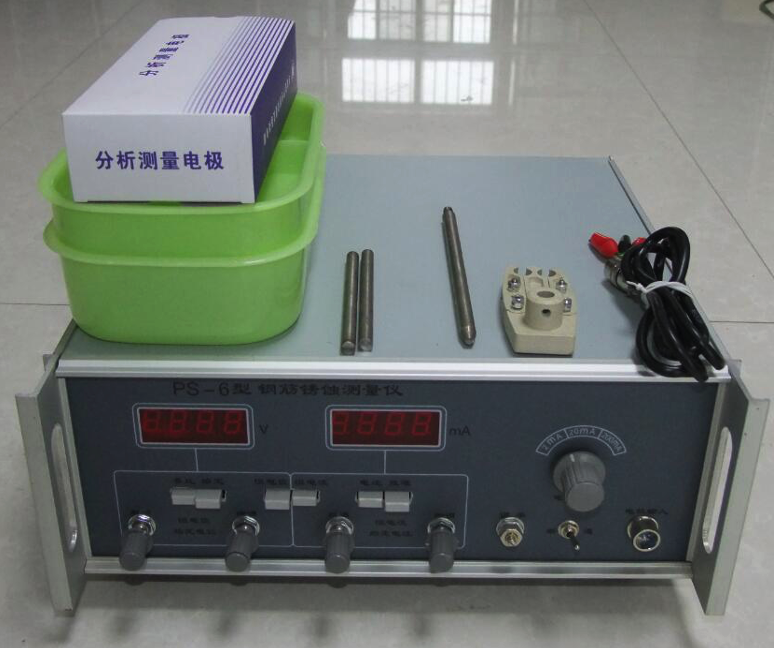

Name：PS-6 Rebar Corrosion Tester/PS-1 Anodic Polarization Tester
Specification
Constant potential control range: -1.999V~+1.999V (continuously adjustable)
Constant potential control accuracy: better than 1mV (generally 0.1mV), the grid voltage changes 10%, and the research electrode control potential change is less than 1mV
Output current measurement range: 0~±2mA (digital current display)
0~±20mA (digital current display)
0~±200mA (digital current display)
Output tank pressure: 0~±10V
Constant current control range: 0~±2mA (continuously adjustable)
0~±20mA (continuously adjustable)
0~±200mA (continuously adjustable)
Output potential measurement range: -1.999V~+1.999V
Potential measurement accuracy: ±1%
Current measurement accuracy: ±1.5%
Input impedance: >1010Ω
Response speed: ≤5uS
Polarization direction: anodization/cathodicization
External given potential: given potential by external control signal
Power supply: AC 220V±10%, 50HZ, power consumption ≤50W
Dimensions: 340×300×120 (mm)
Weight: 6Kg
Environmental conditions for use: ambient temperature -10°C~40°C, relative humidity <80%
