1.Application And Feature:

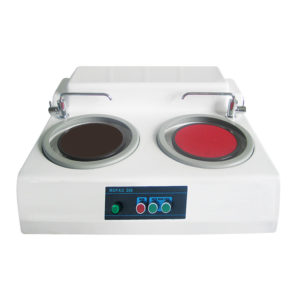

M-2 Metallographic Specimen Pre-grinding Machine is a kind of double disk pre-grinding machine.
Taking advantage of various water-resistant sand papers with different granularity.
It can be used to pre-grind various metal and alloy materials.
By using this machine, manual grinding can be replaced by mechanical grinding so as to improve
specimen preparing efficiency, also the deforming and heating traces produced during cutting can
be removed completely.
This will be suitable to observe and measure the metallographic structure of specimen under
microscope.
2.Technical Parameters:
| Model | M-2 |
| Grinding Polishing Disc, Diameter | 200 mm |
| Grinding Polishing Disc, Revolving Speed | 450 rpm |
| Input Voltage | Single Phase, AC220V, 50Hz |
| Input Power | 370 W |
| Dimension | 725×710×310 mm |
| Weight | 40.00 KG |
