1.Applications:

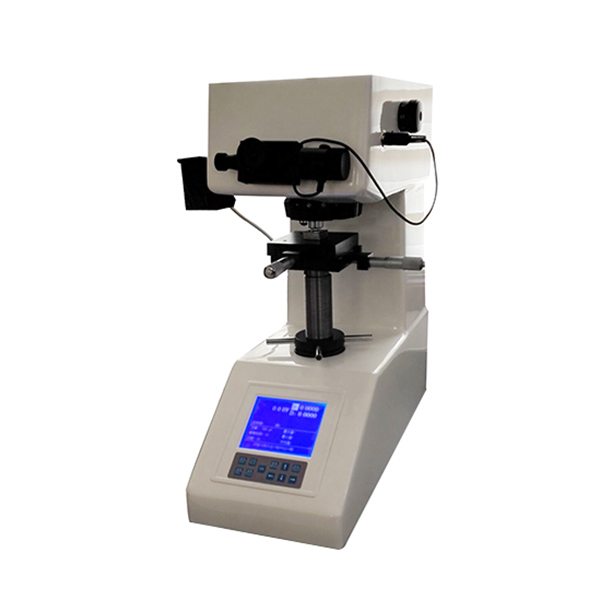

HVS-1000 Manual Turret Digital Display Micro Vickers Hardness Tester used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the
hardness grades of carburized, nitrided and hardened layers of metals.
It is also suitable to determine the Vickers hardness of micro and super thin parts.
- Feature:
2.1.HVS-1000 is Manual Turret Switching.
2.2.Automatic data input, LCD automatically displays hardness value, the printer will print hardness
test results.
2.3.High-precision optical measuring systems, precision coordinate testing table.
2.4.Automatic testing process, easy to operate, no human operating error.
2.5.Frictionless loading shaft, high precision testing force.
2.6.Convert various hardness values.
2.7.Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384.
3.Specifications:
| Model | HVS-1000 |
| Hardness Measuring Range | 5~3000 HV |
| Test Force | 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N. (10, 25, 50, 100, 200, 300, 500, 1000gf) |
| Measurement System Magnification | 400X, 100X |
| Maximum Specimen Permitted Height | 90 mm |
| Distance Between Pressure Head Center And Its Wall | 120 mm |
| Power Supply | AC 220V, 50Hz |
| Dimensions | 530 * 290 * 490 mm |
| Weight | 40 KG |
