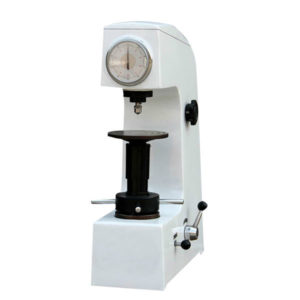

HR-150A Manual Metal Rockwell Hardness Tester

HR-150A Manual Metal Rockwell Hardness Tester

HR-150A Manual Metal Rockwell Hardness Tester

1.Application:

HR-150A Manual Metal Rockwell Hardness Tester is an indispensable hardness measuring

instrument in machinery, metallurgy and metrology department.

It mainly functions are as follows:

1.1. Lever Loading, manual operation, durable and reliable.

1.2. No friction spindle, high precision test force.

1.3. Precision hydraulic buffers, steady load.

1.4. Dial display the hardness value, HRA, HRB, HRC, and can choose other Rockwell Scale.

1.5. Accuracy according to GB / T230.2, ISO 6508-2 and American ASTM E18 standard.

2.Usage Range:

Rockwell hardness measurement of ferrous metals, non-ferrous metals and non-metallic materials.

Wide range of applications, suitable for rockwell hardness testing of hardening, quenching and other heat-treated material.

3.Specifications:

ModelHR-150A
Preliminary Test Force98 N, 29.40N
Total Test Force588.4N,  980.7N,  1471N (60, 100, 150kgf)
Test Range(20-88)HRA;  (20-100)HRB;  (20-70)HRC.
Max. Test Height170mm
The Distance Between Pressure

Head Center And The Wall

135mm
Hardness Resolution0.5HR
Dimensions466*238*630mm
Weight70 KG

4.Standard Accessories:

Large Flat Anvil: 1 PC.

Small Flat Anvil: 1 PC.

Large V-notch Anvil: 1 PC.

Diamond Cone Penetrator: 1 PC.

1/16″ Steel Ball Penetrator: 1 PC.

Rockwell Standardized Block: 5 PCS.
