1.Description:

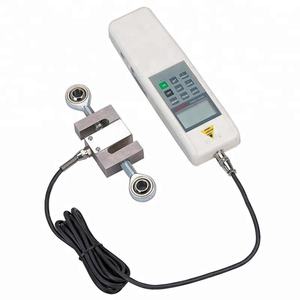

The force gauge has advantages of high precision, easy operation and carry. What’s more, it has kinds of testing modes, convenience for conner and it can store and input data to computer for statistical analysis as well as constitutes testers with different functions, combination with test-beds and clamp. Users can input local acceleration of gravity value to make test more precise.
2.Technical Parameters:
| Model | HF- 1000 | HF- 2000 | HF- 5000 | HF- 10K | HF- 20K | HF- 50K | HF- 100K | HF- 200K | HF- 500K | HF- 1000K | ||
| Peak Load Value | 1000N | 2000N | 5000N | 10KN | 20KN | 50KN | 100KN | 200KN | 500KN | 1000 KN | ||
| Load Division Value | 1N | 0.01KN | 0.1KN | 0.1KN | 1KN | |||||||
| 0.1Kg | 0.001Mg | 0.01Mg | 0.01Mg | 0.1Mg | ||||||||
| 0.1 lbs | 0.001 Klbs | 0.01 Klbs | 0.01 Klbs | 0.1 Klbs | ||||||||
| Indication Error | ±0.5% | ±1% | ||||||||||
| Unit | N / (KN), kg / (Mg or t), lbs (Klbs) | |||||||||||
| Data Interface | Rs232 nine-hole Socket | |||||||||||
| Power | Rechargeable Batteries, Charger(Charging Voltage 100V-240V) | |||||||||||
| Sensor Structure | S-tye Or Column Sensor With High Precision (External Sensor) | |||||||||||
| Ambient Temperature | 5° C~35° C | |||||||||||
| Transport Temperature | -10° C~60° C | |||||||||||
| Relative Humidity | 15%~80% RH | |||||||||||
| Working Conditions | No Hypocenter And Corrosive Medium | |||||||||||
| Gross Weight | 6 KG | 9 KG | 24 KG | 36 KG | ||||||||
| Size | 280 x 200 x 170 mm | 310 x 260 x 190 mm | ||||||||||
