1.Application:

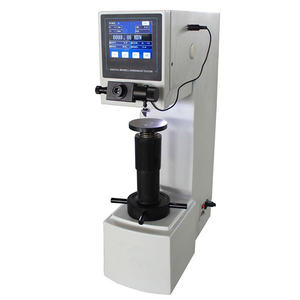

HBS-3000 digital brinell hardness tester is a recently developed new generation Brinell tester that is
domestically advanced.
It can be applied to determine the Brinell hardness for ferrous metal and non-ferrous metal.
The tester adopts electronic auto loading, computer software programming, high power optical
measurement, photosensor and other systems.
Eash operational process and test manufacturing enterprises,colleges and scientific institutions.
2.Technical Specifications:
| Model | HBS-3000 |
| Type | Digital Brinell |
| Test Range | 8~650 HBW (hardmetals steel ball) |
| Brinell Hardness Test (N) | 612.5, 980, 1225, 1837.5, 2450, 4900, 7350, 9800, 14700, 29400 |
| Load Control | Automatic |
| Magnification Of Microscope | 20X for reading microscope |
| Max. Height Of Specimens | 220mm |
| Max. Depth Of Specimens | 135mm |
| Power | AC 220V, 50Hz |
| Dimension (D*W*H) | 550 * 236 * 753mm |
| Net Weight | 130 KG |
| Packing List | |
| Indenter | Steel ball indenter í2.5mmx1 í5mmx1 í10mmx1 |
| Testing Table | Big / Small /V, 1 For Each |
| Hardness Block | HBW 3000/10 150~250 x 1, HBW 1000/10 75~125 x 1, HBW 187.5/2.5 150~250 x 1. |
| Operation Manual | 1 |
| Reading Microscope | 20X * 1 |
| Micrometer Eyepiece | 1 |
