1.Application:

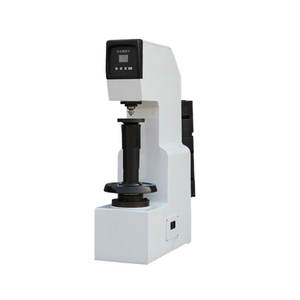

HB-3000B Brinell Hardness Tester used electronic directional control switch. Can be used to determine un-quenched steel.,Cast iron.,Non-ferrous metal and the soft texture of bearing metal materials ‘ brinell hardness value.
2.Features:
2.1.High precision reading microscope measurement system.
2.2.Mechanical structure patent design, low noise with extremely low failure rate.
2.3.Electronic reversing switch.
2.4.Accuracy accord with GB/T231.2, ISO6506-2 and the United States ASTM E10 standard.
3.Technical Parameter:
| Model | HB-3000B |
| Testing Range | 8-650HBW |
| Testing Force | 1838.8, 2415.8, 7355.3, 9807, 29421N (187.5, 250, 750, 1000, 3000 kgf) |
| Max Testing Height | 230mm |
| Distance Between Pressing Head Center And The Wall | 120mm |
| Power Supply | 220V/50Hz |
| Size | 466 x 238 x 630mm |
| Weight | 210 KG |
4.Standard Accessories:
| Descriptions | Quantity |
| Large testing platform | 1 pc. |
| Small testing platform | 1 pc. |
| V-notch testing platform | 1 pc. |
| Tungsten carbide steel ball indenter | 1 pc. Φ2.5, 1 pc. Φ5, 1 pc. Φ10 |
| Rockwell standardized block | 2 pcs. |
| 20 times readings microscope | 1 pc. |
| Instruction manual | 1 share |
| Packing list | 1 share |
