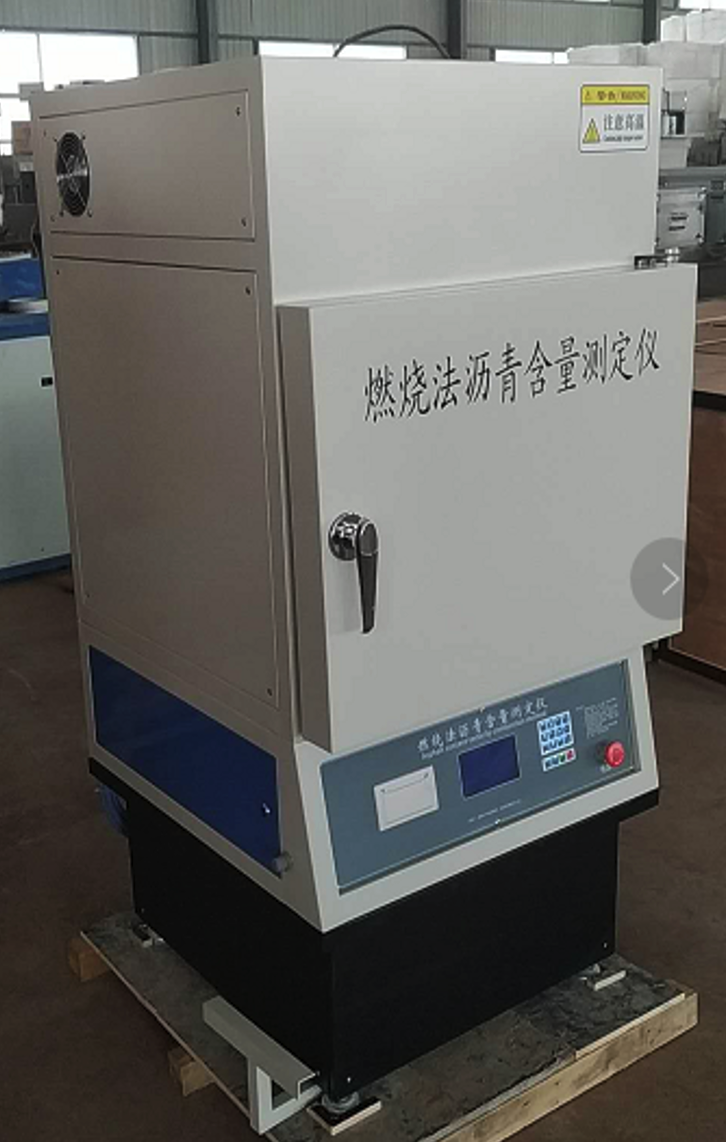

Name：Combustion method asphalt content tester (combustion furnace)
Model：LCRS-6
Specification
- Features
(1) Intelligent: It has the functions of automatically generating and saving test results; recalling historical data and printing test reports.
(2) High temperature control accuracy and good stability: PWM modulation method is used for temperature control with PID function.
(3) Strong electromagnetic compatibility: the heating channel has a soft start function for turning on and off the power; the electric control system has an electromagnetic shielding protective cover.
(4) Energy saving: The furnace body made of thickened high-performance insulation materials greatly reduces heat energy loss.
- Main Specifications
The maximum weight of the sample: 3.0kg.
Weight detection accuracy: ±0.1 g.
Temperature control setting range: 100~800℃.
Temperature detection resolution: 1.0℃.
Temperature control accuracy: ±5℃.
- System standard configuration
Temperature collection: two channels.
Temperature control: two channels.
Weight detection: all the way.
Standard basket, tray feeder: one set.
Controller: one.
Mini printer: one.
- power supply
Rated power: 220V AC, 8.0KW; 220V AC, 300W.
- Body size
Length×width×height: 0.85m×0.65m×1.25m.
- Main combustion chamber volume
Width × height × depth: 0.30m×0.25m×0.45m
- Body weight
Net weight = 260 kg.
