1.Function And Application:

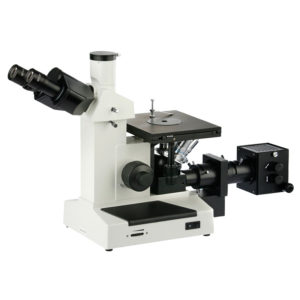

4XC Trinocular Inverted Metallurgical Microscope is mainly used for metal identification and analysis of the internal structure of organizations.
It is the important device which can be used to study the metallographic of metal, and it is also the key instrument to verify the product quality in industrial application.
This microscope can be equipped with photographic device which can take metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
2.Main Technical Parameters:
| Model | 4XC |
| Three Eyepiece Tube | Tilting Angle: 30° Adjustable Range: 55~75mm |
| Eyepiece | Wide View Eyepiece 10X (16mm) |
| Objective Lens | Flat Fielding Achromatic Objective Lens 10X, 20X, 40X, 100X (oil) |
| Total Magnification | 100X~1000X |
| Loading Table | 150 x 200mm Moving Range: Vertical 15mm, Horizontal 15mm |
| Eyepiece (Optional) | 12.5X, 16X, 20X, 10X Flat Fielding Graduation Eyepiece (Grid Value 0.1mm) |
| Objective Lens (Optional) | 60X, 80X. |
