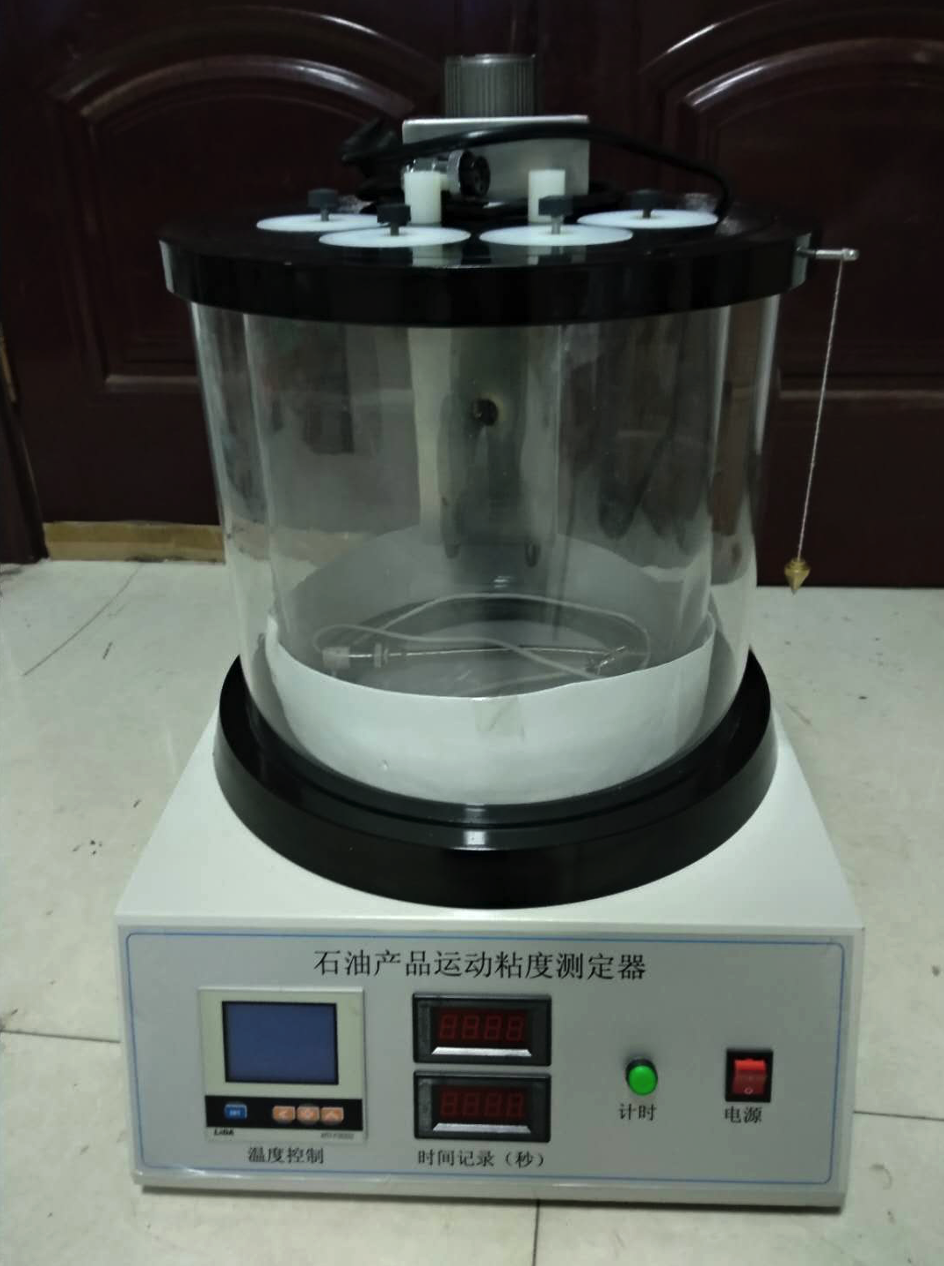

Name：Asphalt Kinematic Viscosity Tester
Model：SYD-065E
Specification
Main technical specifications and parameters
- Power supply: AC220V±10%, 50Hz.
- Bath heating power: two gears, 1000w (auxiliary heating) 600w (temperature control heating)
- Use temperature of bath: room temperature~150.0℃.
- Water bath temperature control accuracy: ±0.1℃.
- Mercury thermometer: The scale is 0.1℃, and the temperature measurement range is 100~150℃.
- Water bath capacity: 20L.
- Number of samples: Number of capillaries inserted at the same time: 4 pieces.
- Stirring motor: Power 6w, speed 1200r/min.
- Ambient temperature: -10℃~+35℃.
- Relative humidity: <85%.
- Sensor: Industrial platinum resistance, its index number is Pt100.
- Power consumption of the whole machine: not more than 1800W.
- Capillary viscometer: Canfen type countercurrent capillary
